Wireless anemometers

WIRELESS WIND SENSORS
  • compatible with range of NAVIS display/receiver units
  • long range (500 m/1300 m)
  • long battery life (up to 4 years)
  • extremely easy mounting due to magnetic mounting assembly
  • optionally self levelling mounting
  • simple and robust design with replaceable parts
PDF icon Wireless wind sensors
Long range wireless wind sensors

WIRELESS WIND SENSORS FOR POTENTIALLY EXPLOSIVE ENVIRONMENTS
  • ATEX II 2 G Ex ib IIB T4 proofed (for potentially explosive environments, zone 1 and 2)
  • compatible with range of NAVIS display/receiver units
  • range up to 1300 m
  • simple and robust design with replaceable parts
  • replaceable cups, vane and bearings
PDF icon Wireless wind sensors Ex
Wireless wind sensors for potentially explosive environments

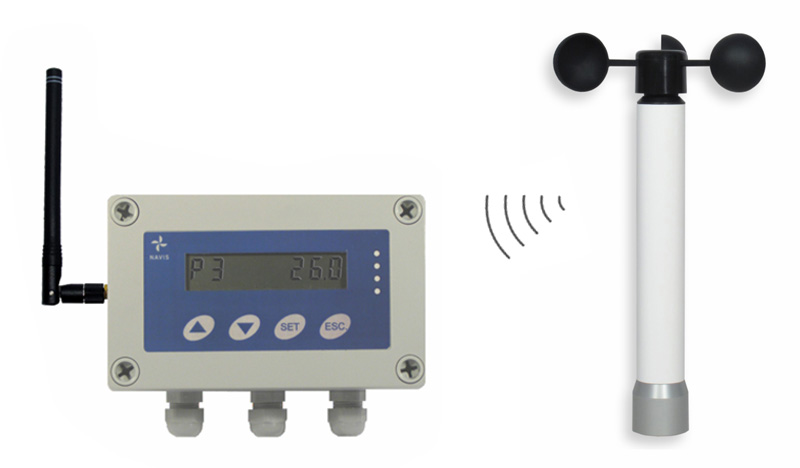

W410 - WIRELESS ANEMOMETER WITH ALARM OUTPUTS
FOR CONSTRUCTION SITES AND INDUSTRY
  • long range wireless sensor (500 m/1300 m)
  • integrated sound alarm and warning lights
  • extremely easy mounting due to wireless sensor
    and magnetic mounting
  • optional wireless repeater displays
  • WiFi connection to Navis LiveData WEB interface (W410XW and W410XL)
PDF icon W410 Selection Chart
PDF icon W410
PDF icon W410/BAT
PDF icon W410XW/XL application notes
PDF icon LiveData
PDF icon CM4000 MOBEYE CM-GUARD - GSM ALARM MODULE
W410 - Wireless anemometer with alarm outputs

W210 - WIRELESS ALARM ANEMOMETER
  • easy installation without running cables
  • range up to 400 m
  • built-in audible alarm and red/yellow alarm lights
  • 2 x programable alarm relay outputs
  • 12...24V external powered
  • shock proof, user replaceable anemometer cups
  • user replaceable sensor bearings
PDF icon W210
PDF icon CM4000 MOBEYE CM-GUARD - GSM ALARM MODULE
W210 - Wireless alarm anemometer

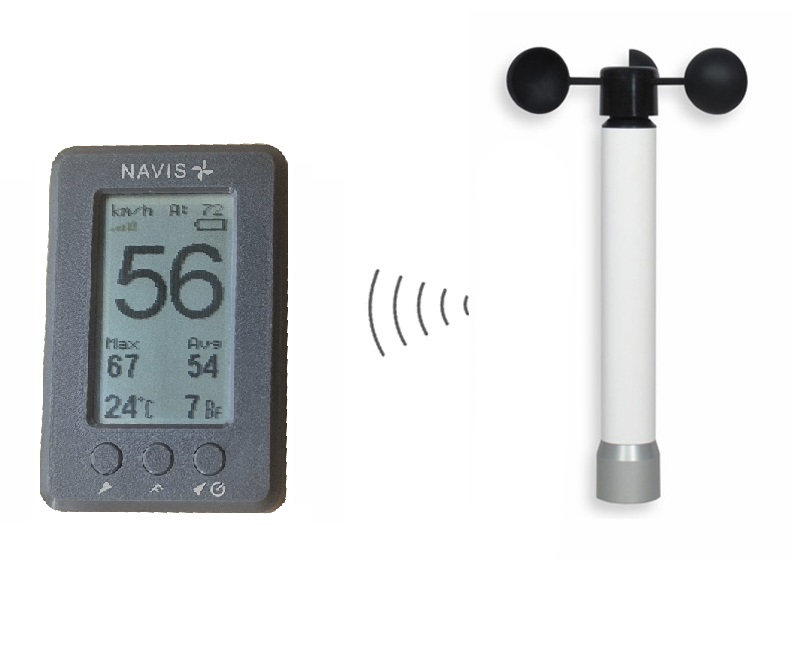

WR5 - WIRELESS ANEMOMETER
BASIC ANEMOMETER WITH ALARM
  • shows all vital wind data
  • history graphs
  • wind speed or wind speed/direction sensor
  • easy installation without running cables
PDF icon WR5
WR5 - Wireless anemometer

WINDY WR3B - WIRELESS PORTABLE ANEMOMETER
  • handheld/portable display unit
  • suitable for permanent or temporary installation
  • wind speed can be monitored up to 400 meters from the sensor position
PDF icon Windy WR3B
WINDY WR3B - Wireless portable anemometer

WL 12 - WIRELESS ANEMOMETER / WIND LOGGER
  • shows and store all vital wind data
  • store data on micro SD card for further analysis
  • real time stamp for each stored data
  • long range - up to 250/1200 m
  • easy installation without running cables
  • large, night iluminated LCD display
PDF icon WL 12
WL 12 - Long range wireless wind logger

W110 - LONG RANGE WIRELESS WIND SPEED AND DIRECTION SENSORS
  • easy installation without running cables
  • long range - up to 400/1300 m
  • 4 - 20 mA or pulse output
  • instant wind data - data transmission each 2 seconds
  • precision stainless steel ball bearings, nylon cup assembly
  • durable and replaceable anemometer cups
  • optional individual calibration certificate
PDF icon W110
W110 - Long range wireless wind speed and direction sensors

W110 USB - WIRELESS WIND SPEED AND DIRECTION SENSOR WITH UART GATEWAY
  • wireless anemometer with UART gateway provides data reading from wireless wind speed and direction sensors
  • long range - up to 1300 m
  • UART gateway is used for developing custom wind measuring applications on multiple platforms (PC, Raspberry pi...)
  • drivers for virtual COM port are available for Windows, Linux or OS X
PDF icon W110 USB

Download virtual COM PORT drivers
W110 USB - Wireless wind speed and direction sensor with UART gateway

WRP 01 SIGNAL REPEATER / RANGE EXTENDER
  • extends wind sensors range up to 1300 m
  • compatible with NAVIS wind sensors
PDF icon WRP 01
WRP 01 - Signal repeater range extender for wireless wind sensors

CM4000 MOBEYE CM-GUARD - GSM ALARM MODULE
  • 4G LTE-M/2G communication
  • alarm via SMS, call, app and email
  • signal inputs can be connected directly to Navis Y210/W410 relay outputs
  • external or battery powered
PDF icon CM4000 MOBEYE CM-GUARD
CM4000 MOBEYE CM-GUARD - GSM ALARM MODULE
